Deck Machinery

Kingfisher is a leader in the design and supply of all types of Deck machinery for marine and offshore applications. Our expertise and resources are also applicable for custom designed deck machinery in order to meet the safe and stringent requirements on the specialized vessels.

Escort

Escort Winch 280 kW
Combined Split drum-Anchor / 200m rope 120 mm
Pull 80 ton Variable speed
Rendering 120 ton
Brake 260 ton
(RPVCS) Romagnoli Power Variable Control System (NEW)Touch screen control -PLC
Escort Winch 250 kW
Separate Double drum/ 200m rope 64 mm
Pull 118 ton Variable speed
Rendering 139 ton
Brake 180 ton
(RPVCS) Romagnoli Power Variable Control System (NEW) Touch screen control -PLC

 Towing

Towing Winch 80 kW
Drum suitable for 800m wire 52 mm
Spooling device, Hydr.drum clutch
Pull 400 kN Double speed
Brake 1500 kN
Towing Winch 45 kW
Drum suitable for 400m rope 40 mm
Hydr.drum clutch
Pull 100kN Double speed
Brake 1150 kN
Warping head 30 kN
Towing Winch 85 kW
Split Drum suitable for 400m rope 40 mm
Hydr.drum clutch
Pull 300 kN Variable speed
Brake 850 kN
Warping head 50 kN
Towing Winch 45 kW
Drum suitable for 400m wire 44 mm
Spooling device, Hydr.drum clutch
Pull 200 kN Double speed
Brake 700 kN ton
Cable Winch 15 kW
Drum suitable for 400m wire 20 mm
Mech.drum clutch
Pull 35 kN Variable speed
Brake 220 kN
A.H.T. Winch 280 kW
Drum upper: suitable for 800m wire 62 mm
Drum lower: suitable for 400m wire 62 mm
Spooling device, Hydr.drum clutch
Pull 1200 kN Double speed
Brake 2500 kN
Touch screen control –PLC- tension control
Tagger Winch 40 kW
Drum suitable for 800m wire 22 mm
Mech.drum clutch
Pull 300 kN Double speed
Brake 300 kN
Worping head 60 kN

Cable Winch 15 kW
Drum suitable for 400m wire 20 mm
Mech.drum clutch
Pull 35 kN Variable speed
Brake 220 kN
Spare Rope Winch 2.2 kW
Drum suitable for 200m Rope 72 mm
Pull 20 kN Double speed
Brake 22 kN
Rope Reel Winch 20 kW
Drum suitable for 1000m wire 62 mm
Hydr.drum clutch
Pull 45 kN?Brake 45 kN (bend)?
Brake 40 kN (negative)


Bulk Carrier- Oil Tanker

Mooring Winch 22 kW
Split drum: suitable for 190m rope 52 mm
Autotension mode, Mech.drum clutch
Pull 80 kN Double speed
Break 250 kN
Warping head 60 kN
Combined Mooring Winch 22 kW
Split drum:suitable for 190m rope 52 mm
Chain lifter drum: suitable till chain 36 Q3
Autotension mode, Mech.drum clutch
Mooring part:Pull 80 kN Double speed
Brake 250 kN
Warping head 60 kN
Combined Mooring-Anchor Winch 55 kW
Split drum: suitable for 200m rope 60 mm
Chain lifter drum: suitable till chain 76 Q3
Autotension mode, Mech.drum clutch
Mooring part: Pull 160 kN Double speed
Brake 365 kN
Warpinghead160kN
Mooring Winch 55 kW
Split drum: suitable for 200m rope 60 mm
Autotension mode, Mech.drum clutch
Pull 160 kN Double speed
Brake 365 kN
Warping head 160 kN

Ro-Ro

Mooring Winch 55 kW
Split drum: suitable for 200m rope 60 mm
Autotension mode, Mech.drum clutch
Pull 160 kN Double speed
Brake 365 kN
Warping head 160 kN
Combined Mooring Winch 55 kW
Split drum: suitable for 200m rope 60 mm
Chain lifter drum: suitable till chain 60 Q3
Autotension mode, Mech.drum clutch
Mooring part: Pull 160 kN Double speed
Brake 365 kN
Warping head 160 kN

Barge

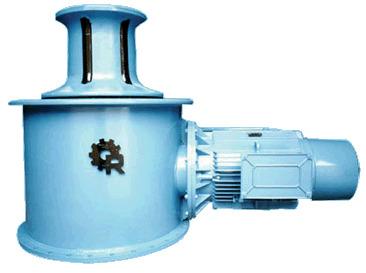

Vertical Windlass 50 kW
Suitable for 50 chain Q3
Mech.drum clutch. Variable speed
Capstan 110 kN
Executable for chain from 16 to 76 Q3
Cable- Windlass Unit 25 kW
Suitable for 400 m wire 24 mm, pull 100 kN
Mech.drum clutch. Spooling device .Variable speed
Capstan
Electric Variable speed, High torque
Hydraulic variable speed, High torque
Pull:15kN; 30kN; 50 kN; 70kN; 100kN;
150 kN; 200 kN

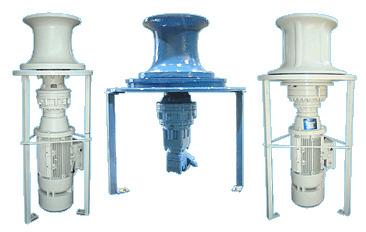

Capstan 100kN
Installation upper deck
Electric Variable speed, High torque
Hydraulic variable speed, High torque
Pull:15kN; 30kN; 50 kN; 70kN; 100kN;
150kN;200kN
Pump Aggregate (150 kW)
Motor Iveco N67 205 kW / 2000 rpm
Water pump 750mc Garbarino
Aternator Meccalt 40kVA
Hydr serv Pump 55 kW
Pump Aggregate (93 kW)
Motor Iveco Nef 45 93 kW /1800 rpm
Water pump 450mc Garbarino
Aternator Meccalt 40kVA
Hydr. serv Pump 45 kW


Special Vessel

Windlass for 46 chain Q3
Twin winch supplied military unit
Chain lifter for chain from 16 to 76 q3
Oceanic Trawling Winches 120 kW
Drum suitable for 1500m wire 40 mm
Hydr.drum clutch
Pull 250kN Variable speed
Brake 700 kN
Cable Winch 15 kW
Drum suitable for 400m wire 20 mm
Mech.drum clutch
Pull 35 kN Variable speed
Brake 220 kN
Cable- Anchor Winch 35 kW
Drum suitable for 800m wire 24 mm
Spooling device Mech.drum clutch
Pull 150 kN Variable speed
Brake 230 kN
Windlass Unit 37 kW
Suitable for 54 chain Q3
Mech.drum clutch. Variable speed
Executable for chain from 16 to 76 Q3
Combined Mooring Winch 55 kW
Split drum:suitable for 200m rope 60 mm
Chain lifter drum: suitable till chain 76 Q3
Autotension mode, Mech.drum clutch
Mooring part:
Pull 160 kN Double speed
Brake 365 kN
Worpinghead160kN

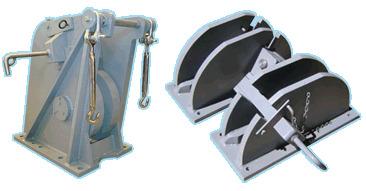

Chain Stopper
Standard type or roller type till 76 Q3


Luxury Capstan Winch
(in AISI 316 hand polished)
Electric Variable speed, High torque
Hydraulic variable speed, High torque
Pull:6 kN;15kN; 30kN; 50 kN; 70kN; 100kN
Windlass Winch
(in AISI 316 hand polished)
Electric Variable speed, High torque
Hydraulic variable speed, High torque
Suitable for chain to 30 till 64 Q3
Windlass Winch?
(In AISI 316 hand polished)
Electric Variable speed, High torque
Hydraulic variable speed, High torque
Suitable for chain to 16 till 28 Q3
